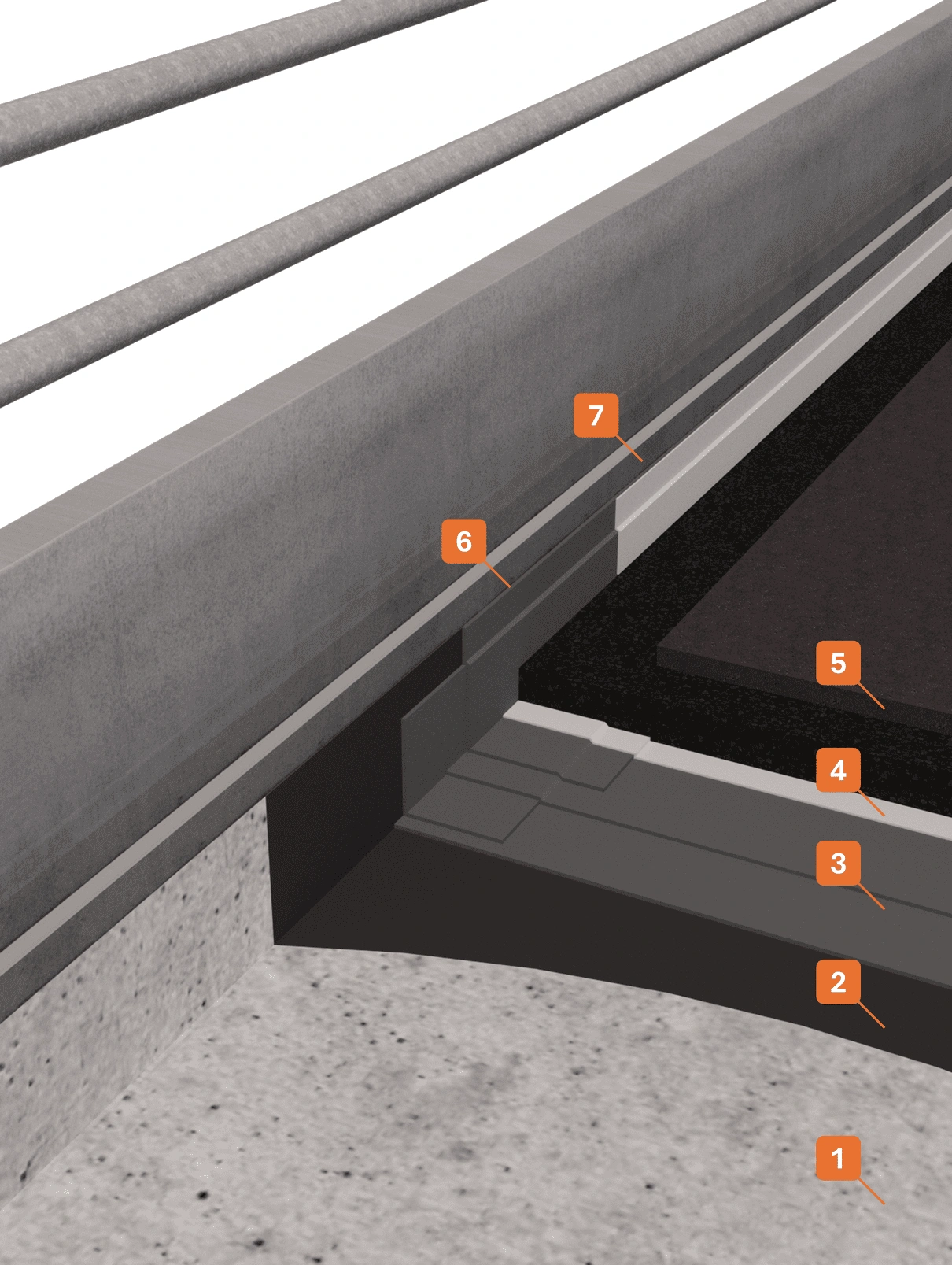

BITUMINOUS MEMBRANE WATERPROOFING AND ASPHALT FINISH

Waterproofing application using a bituminous membrane suitable for the subsequent asphalt pouring stage

1 CONCRETE SUBFLOOR

2 PRIMER

Applied with roller, brush, or spray using ECOIMPRIMER, bituminous primer, total consumption 150–200 g/m².

3 WATERPROOFING

Double-layer application of hot-applied elastoplastomeric bituminous membrane (BPP) COVERBOND HP55, with cold flexibility down to –10 °C. The membrane features reinforcement made of continuous filament polyester nonwoven fabric stabilized with glass, rot-proof, suitable for use on bridges, viaducts, and decks.

4 SOLAR-SHIELDING ELEMENT

5 ASPHALT PAVING

6 WATERPROOFING, VERTICAL UPSTAND

Applied with hot-applied elastoplastomeric bituminous membrane (BPP) COVERBOND HP55, cold flexibility –10 °C. Reinforced with continuous filament polyester nonwoven fabric stabilized with glass, rot-proof, suitable for bridges, viaducts, and decks.

7 FLASHING AND SEALING
