Waterproofing of swimming pools with wfz5 winflex cement and tiled finish

Construction of tiled swimming pools by negative buoyancy resistant waterproofing and two-component cementitious waterproofing

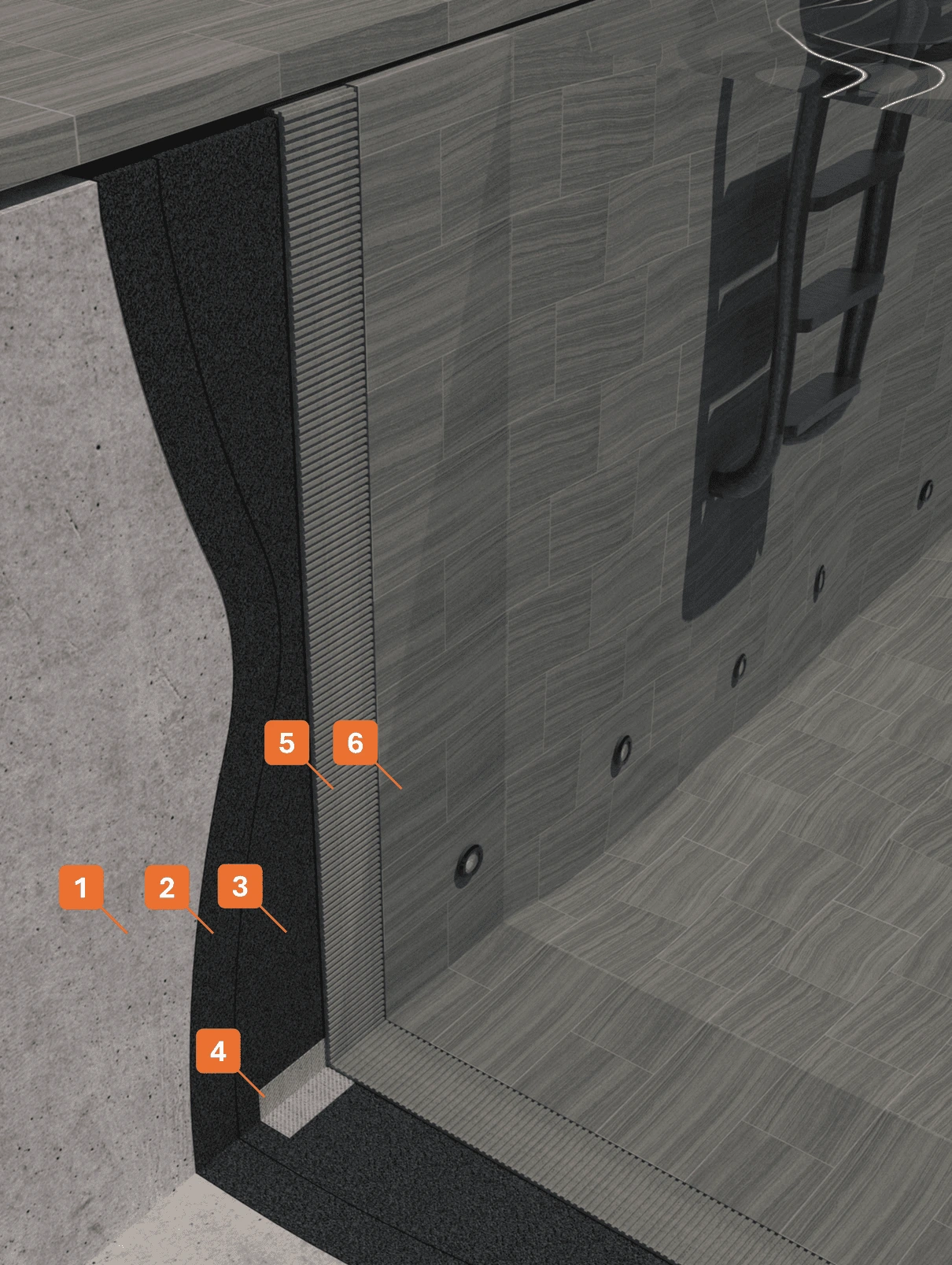

1 CONCRETE POOL STRUCTURE – CONCRETE STRUCTURE OF THE SWIMMING POOL

2 NEGATIVE-SIDE WATERPROOFING – FIRST COAT

Application with trowel of three-component thixotropic epoxy-cementitious system WINPOX CEMENT TIXO. Formulated to cure on damp cementitious substrates, suitable for internal and external use, forming a waterproof layer resistant to positive and negative water pressure and abrasion. A small fillet is created at the base of the vertical wall along with the first coat. Consumption: 2.2 kg/m².

3 NEGATIVE-SIDE WATERPROOFING – SECOND COAT

WINPOX CEMENT TIXO, applied with a trowel. Consumption: 2.2 kg/m².

4 CORNER REINFORCEMENT

Application of self-adhesive butyl strip BC SEAL BAND in corners. Used together with BC SEAL PAD for sealing drains, skimmers, and lights.

5 UNDER-TILE WATERPROOFING AND ADHESIVE

Application of cementitious adhesive C2TES2 and under-tile waterproofing BOND CEMENT. Applied in a single layer, ensuring a continuous 2 mm waterproof layer under the tiles. Consumption varies depending on substrate roughness and application method: approximately 3.5 kg/m² for single spreading, 5 kg/m² for double spreading.

6 CERAMIC FLOORING – POOL-SUITABLE CERAMIC TILES

Joint grouting with WINSTUCCO FLEX.
