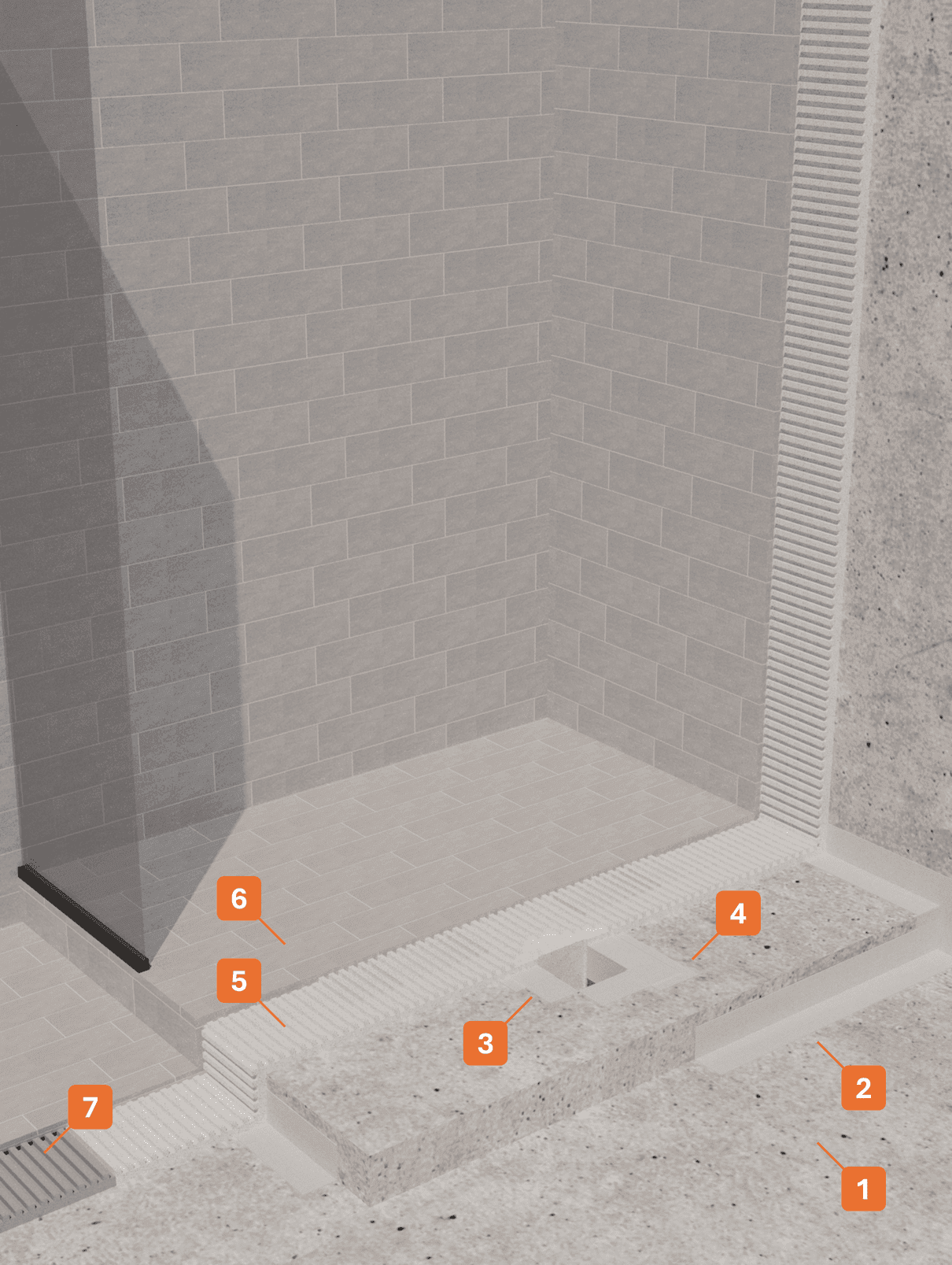

WATERPROOFING OF SHOWERS, BATH TUBS, AND TILED SURFACES USING WATERPROOFING ADHESIVE CEMENT
1 BASE SCREED
Made with WINPLAN 370 or WINPLAN PRO screeds.
2 CORNER REINFORCEMENT
Application of self-adhesive butyl tape BC SEAL BAND at corners.
3 DRAIN / FLOOR OUTLET REINFORCEMENT
Application of self-adhesive butyl tape BC SEAL BAND around drains/outlets.
4 DRAIN / FLOOR OUTLET REINFORCEMENT
Application of self-adhesive butyl patch BC SEAL PAD, overlapping the previously installed BC SEAL BAND.
5 UNDER-TILE WATERPROOFING AND ADHESIVE
Application of cementitious adhesive C2TES2 and under-tile waterproofing BOND CEMENT. The product is applied in a single coat, ensuring a continuous 2 mm layer beneath the tile after installation. Consumption may vary depending on substrate roughness and application method. Indicative consumption: 3.5 kg/m² with single-buttering method; 5 kg/m² with double-buttering method.
6 CERAMIC FLOORING
Installation of ceramic tiles and subsequent joint grouting using WINSTUCCO FLEX.
7 OUTDOOR SHOWER / BATHTUB FLOORING
Tile bonding using flexible adhesive ROYAL EXTRA, suitable for outdoor use, class C2TE.
