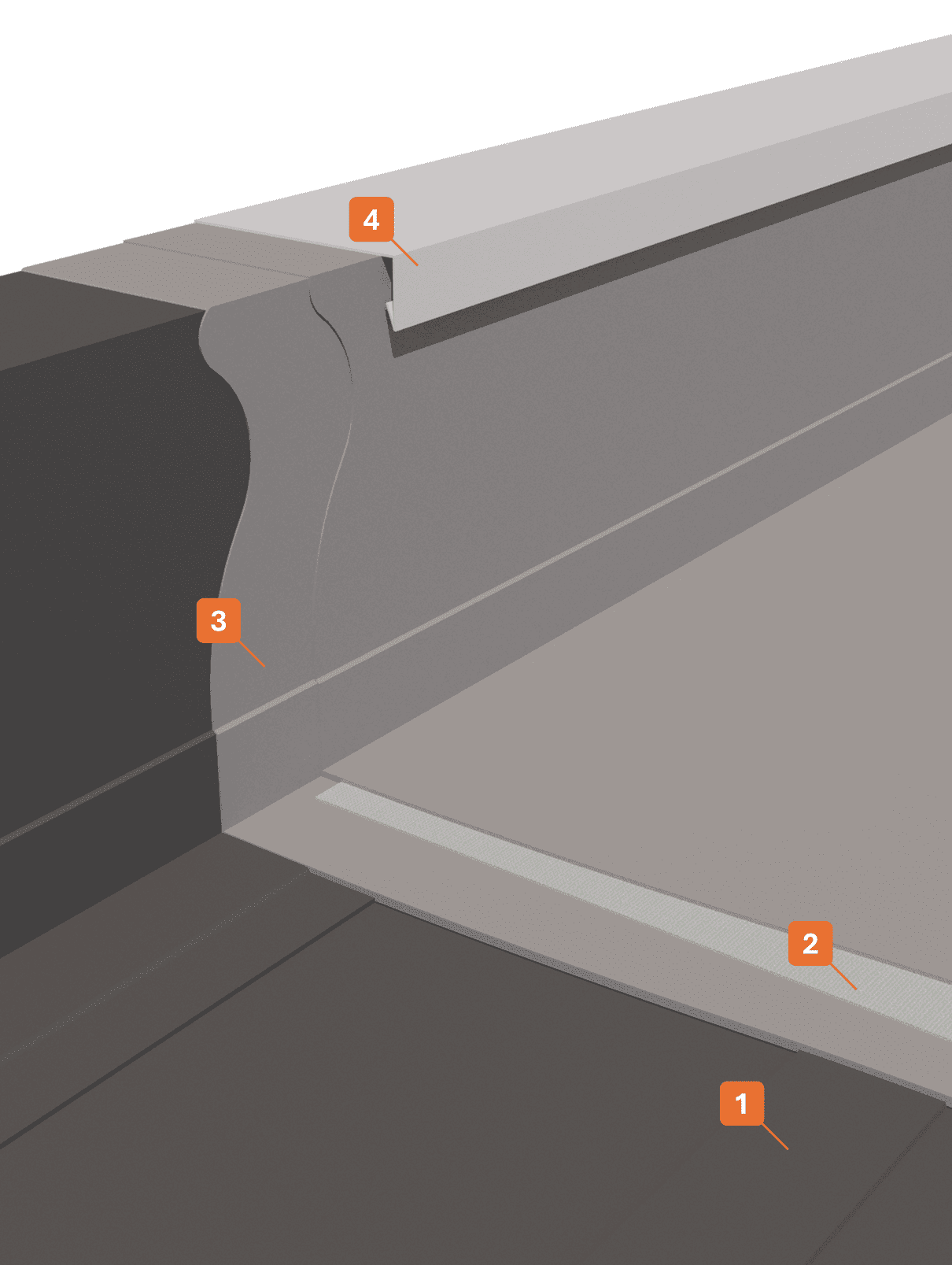

STRATIGRAPHY 1 - Winkler Chimica

Restoration of roofs with reflective liquid membranes - cool roof solution

System for the restoration of walkable roofs for maintenance use, with coloured, single-component, water-based liquid membranes, ready to use and resistant to UV and water stagnation

1 EXISTING BITUMINOUS MEMBRANE

2 WATERPROOFING

Application by roller, brush, or spray of the first coat of Wingum Plus® H₂O, a colored, fiber-reinforced elastomeric liquid membrane. The product is resistant to ponding water, UV rays, and weathering. In the “Reflex” versions, it features high reflectance (SRI 108). Available in “Rapid” version. Applicare, inglobando nella prima mano di prodotto, l’armatura di rinforzo Wintechno Mat, applicando una leggera pressione ed avendo cura di imbibire completamente il tessuto.Il consumo del prodotto, nelle due mani, sarà di 1,8 kg / m2.

3 WATERPROOFING, VERTICAL UPTURN

Apply the first coat of Wingum Plus® H₂O on vertical upturns, using roller, brush, or spray. The product is resistant to water stagnation, UV rays, and weathering. The “Reflex” version has high reflectance (SRI 108). Available also in “Rapid” version for fast-drying or “wet-on-wet” applications. Total consumption for two coats: 1.4 kg/m².

4 UPTURN PROTECTION FLASHING / COPING
