STRATIGRAPHY 1 - Winkler Chimica

ROOF RESTORATION WITH REFLECTIVE, BROOF T2, LIQUID MEMBRANES - COOL ROOF SOLUTION

Roof restoration system for roofing with maintenance foot traffic, using coloured or white reflective liquid membranes, fire-resistant, according to Broof T2 fire classification

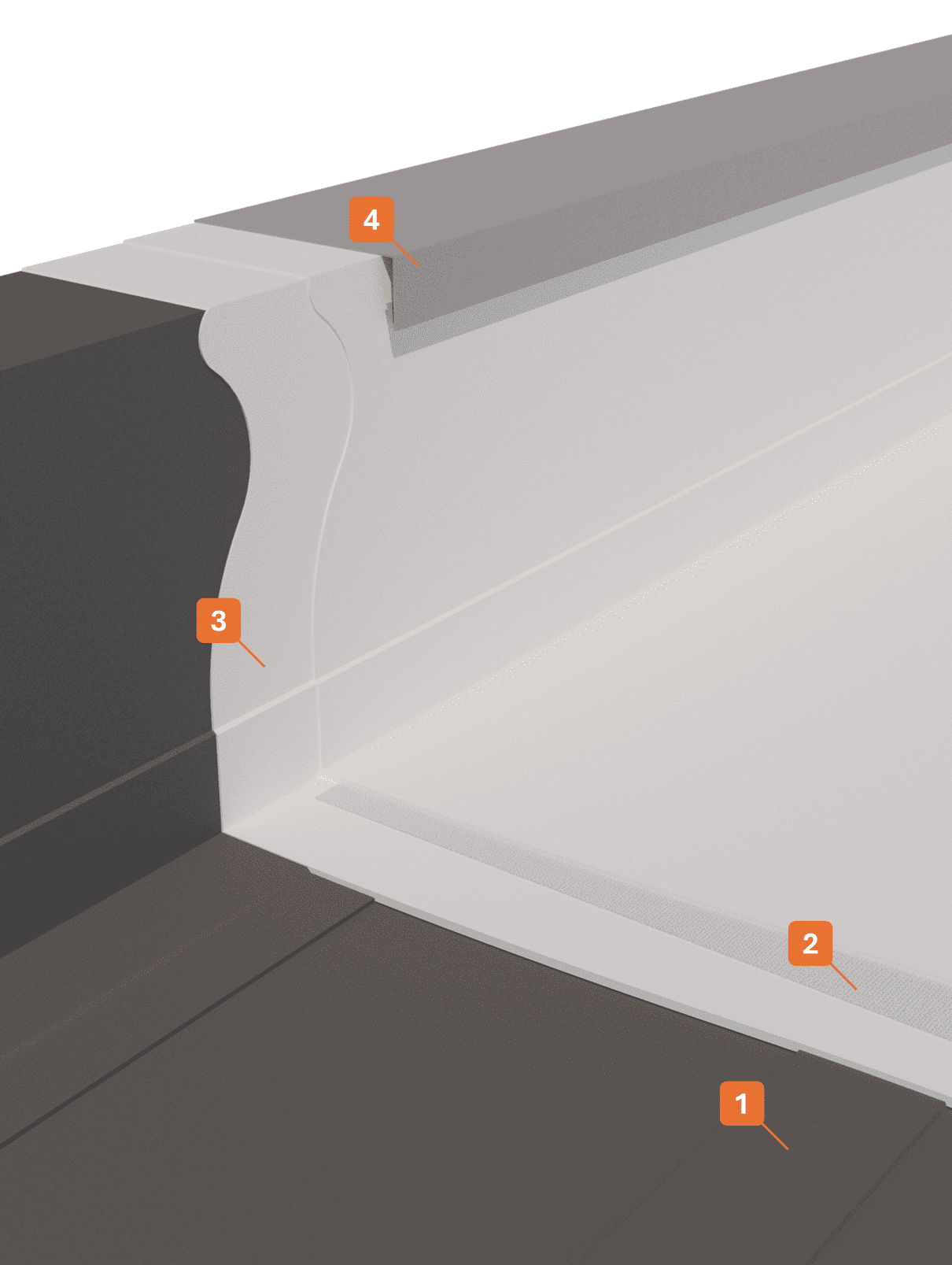

1 EXISTING BITUMINOUS MEMBRANE

2 WATERPROOFING

Apply the first coat of Wingum Plus® H₂O Reflex Broof T2, a colored, fiber-reinforced elastomeric liquid membrane, using roller, brush, or spray. The product is resistant to water stagnation, UV rays, and weathering. The “Reflex” version features high reflectance (SRI 108), and the “Broof T2” version is certified for external fire resistance. Embed Wintechno Mat reinforcement in the first coat, applying light pressure to fully saturate the fabric. Total consumption for two coats: 2.2 kg/m².

3 WATERPROOFING, VERTICAL UPTURN

Apply the first coat of Wingum Plus® H₂O Reflex Broof T2 on vertical upturns using roller, brush, or spray. The product is resistant to water stagnation, UV rays, and weathering. The “Reflex” version features high reflectance (SRI 108), and the “Broof T2” version is certified for external fire resistance. Total consumption for two coats: 1.4 kg/m².

4 UPTURN PROTECTION FLASHING / COPING
