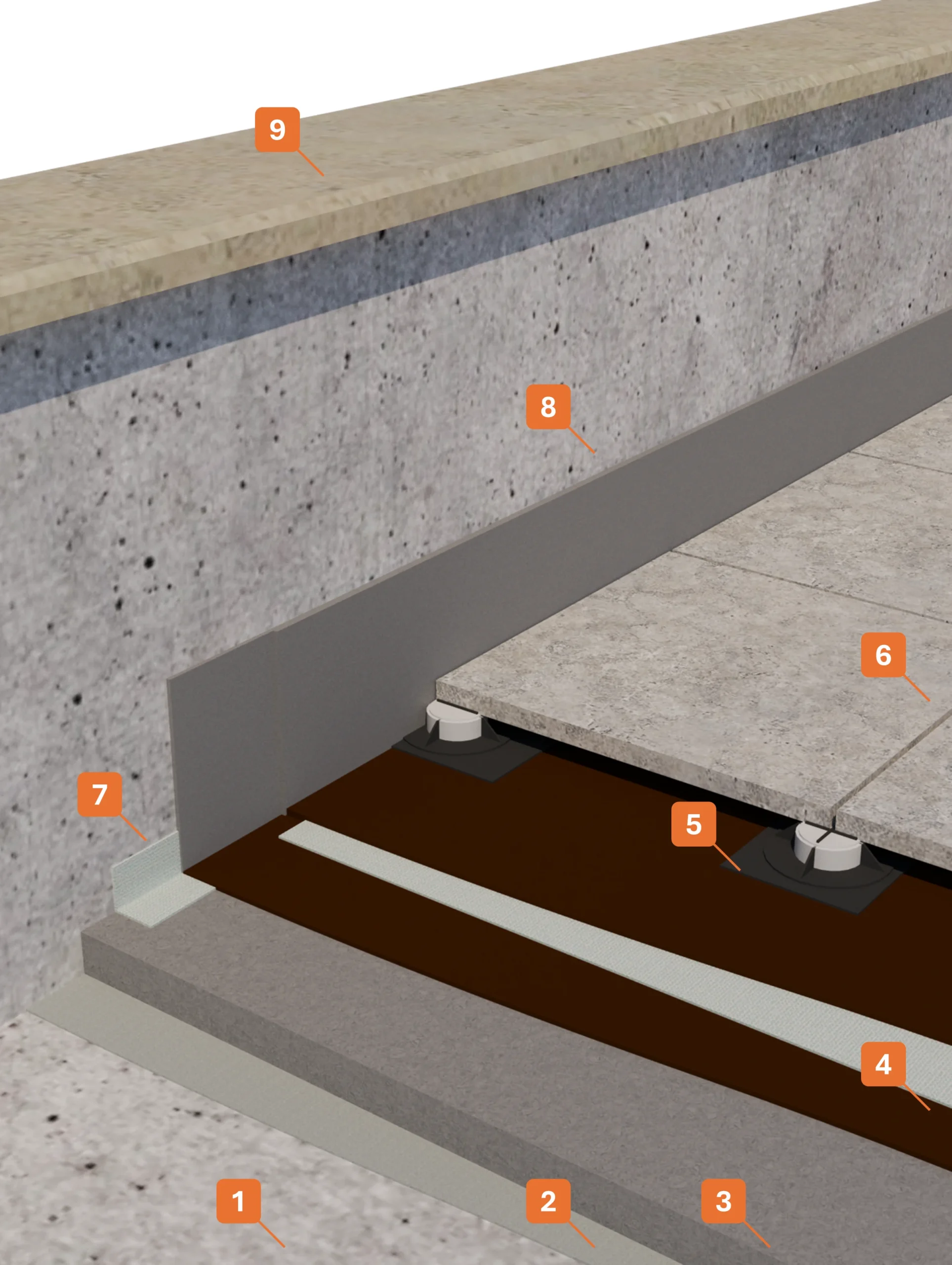

Pavers with floating floor and waterproofing with liquid membrane

Cold roof waterproofed with liquid membrane and with floating pavement

1 LOAD-BEARING ELEMENT

2 ADHESION PROMOTER

For the construction of bonded screeds with thickness from 1 to 3 cm, application of WINGRIP NEXT by roller, brush or spray, with a consumption of 0.5 kg/m². Apply the screed while the product is still fresh.

3 SLOPED SCREED

With a minimum slope of 1%. Executed using WINPLAN 370 or WINPLAN PRO. For bonded screeds with thickness from 1 to 3 cm, the use of WINGRIP NEXT as bonding agent is recommended, applied fresh-on-fresh.

4 WATERPROOFING

Application by roller, brush or spray of the WINGUM PRO TECK system, elastomeric bituminous liquid membrane in water dispersion, waterproofing, thixotropic, resistant to water ponding and atmospheric agents. The system is applied in two coats, with the interposition of WINTECHNO MAT reinforcing fabric on horizontal surfaces. Also available in “Rapid” version for fast drying or fresh-on-fresh applications. Total consumption (two coats): 2 kg/m².

5 BITUMINOUS MEMBRANE PATCH

6 RAISED FLOORING

7 CORNER REINFORCEMENT

Application of self-adhesive butyl tape BC SEAL BAND at corners. Used in combination with BC SEAL PAD also for the treatment of drains, outlets and service penetrations.

8 VERTICAL WATERPROOFING UPSTAND

Application by roller, brush or spray of the first coat of Wingum Plus H2O, coloured and fibre-reinforced elastomeric liquid membrane. Resistant to water ponding, UV rays and weathering. Also available in “Rapid” version for fast drying or fresh-on-fresh applications. Total consumption (two coats): 1.6 kg/m².
