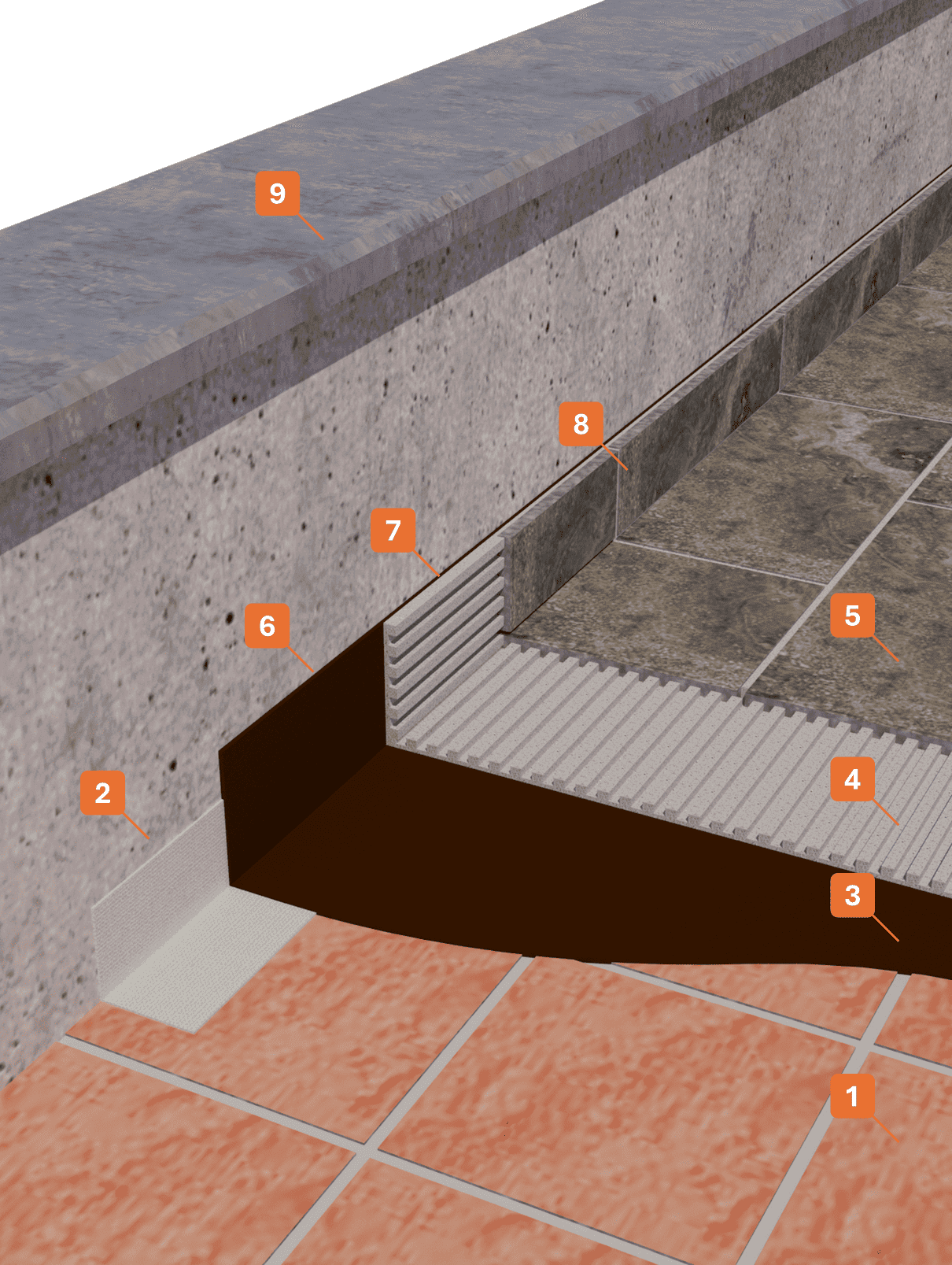

RENOVATION: SINGLE-COMPONENT UNDER-TILE WATERPROOFING

A high-elasticity, single-component liquid membrane for overlaid waterproofing, ready for direct ceramic tiling

1 EXISTING SUBSTRATE

Composed of tiles.

2 CORNER REINFORCEMENT

Application of self-adhesive butyl tape BC SEAL BAND in corners. The product, together with BC SEAL PAD, is used to cover drains, outlets, and penetrations.

3 TILE WATERPROOFING

Application of WINGRIP® BITUMINOSO, a water-based bitumen emulsion product specifically modified with high-quality fillers and polymers to provide excellent crack-bridging and high impermeability. Applied by roller or brush in a single coat. Consumption on screeds and cement substrates: 1 kg/m².

4 TILE ADHESIVE

Bond tiles using flexible adhesive suitable for outdoor use, ROYAL FLEX, class C2TES1.

5 CERAMIC FLOORING

Installation of exterior ceramic tiles. Grouting of joints using WINSTUCCO FLEX.

6 EXISTING VERTICAL UPSTAND WATERPROOFING

7 TILE WATERPROOFING FOR SKIRTING AND VERTICAL UPSTAND

8 INSTALLATION OF NEW SKIRTING

Bond skirting using flexible adhesive suitable for outdoor use, ROYAL FLEX, class C2TES1. Grout joints using WINSTUCCO FLEX.
