MULTILAYER FLOOR COATING WITH VAPOUR BARRIER FOR INTERNAL USE, ALSO FOR DAMP SUBSTRATES

Paint system with vapour barrier, suitable for areas with heavy pedestrian and vehicle traffic, or for irregular surfaces, to guarantee a uniform, level substrate and aesthetic finish

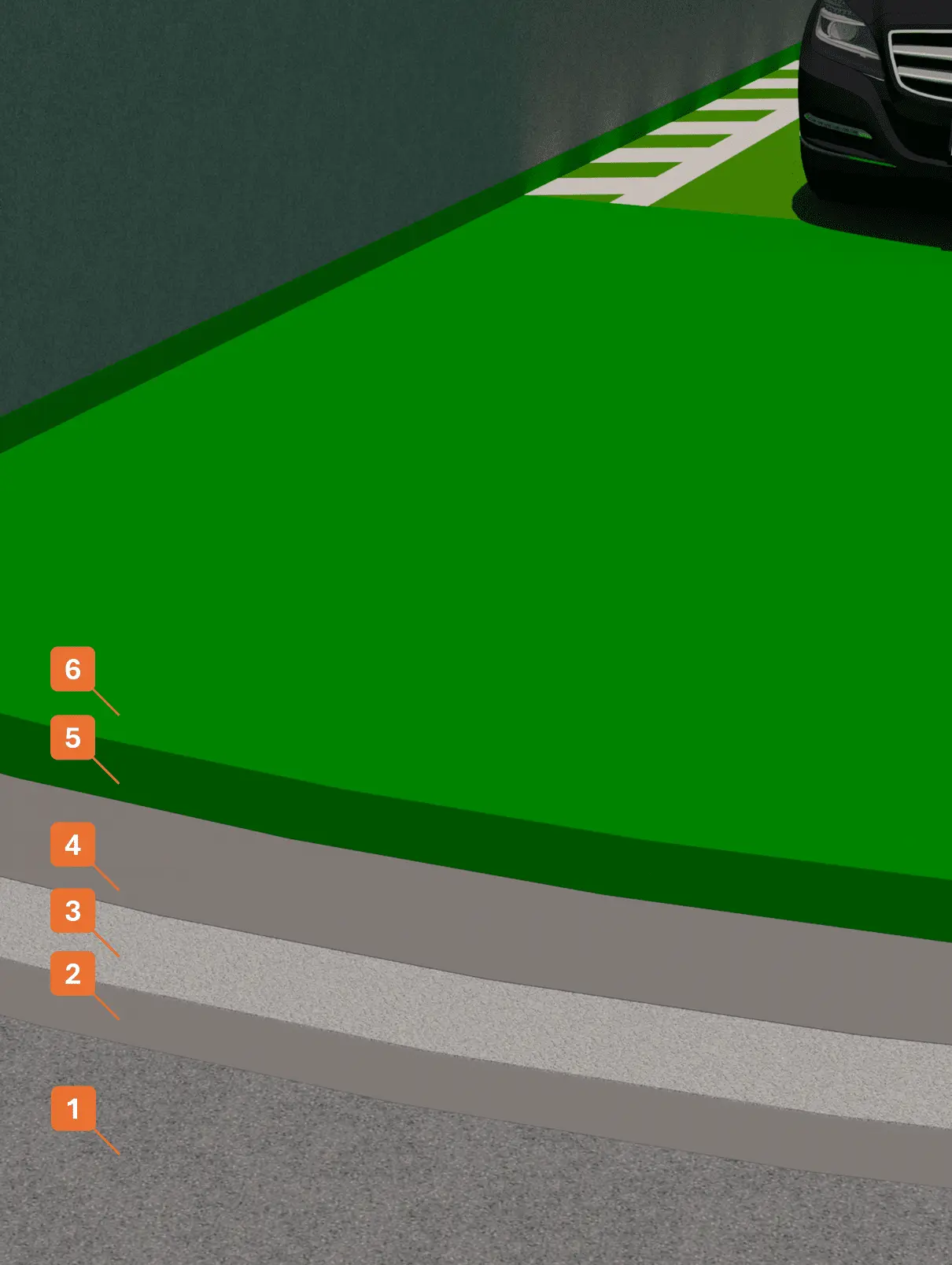

1 CONCRETE SUBSTRATE

2 MULTILAYER FLOORING – FIRST LAYER

Applied with trowel or squeegee using WINFIX WET, two-component thixotropic epoxy-cement system, specifically formulated to cure on damp concrete substrates both indoors and outdoors, forming a waterproof layer under positive and negative pressure. Loaded with quartz 01–03 at 25%. Consumption: 1.3 kg/m².

3 QUARTZ BROADCAST

 Size 01–03, total consumption up to 2 kg/m².

4 MULTILAYER FLOORING – SECOND LAYER

Applied with trowel or squeegee using WINFIX WET, two-component thixotropic epoxy-cement system, specifically formulated to cure on damp concrete substrates both indoors and outdoors, forming a waterproof layer under positive and negative pressure. Applied as-is. Consumption: 1.3 kg/m².

5 EPOXY PRIMER

Applied with roller using WINFIX UNIVERSAL, universal two-component water-based epoxy primer, suitable for various surfaces. Easy to apply by brush or airless spray. Consumption: 200 g/m².

6 POLYURETHANE COATING – FIRST COAT

Applied with roller using UNIBAR F, two-component water-based epoxy formulation suitable for coating concrete floors and skirtings, even in humid conditions. Satin finish. Consumption: 170 g/m².

7 POLYURETHANE COATING – SECOND COAT

Applied with roller using WINPAINT, two-component aliphatic polyurethane water-based paint, non-yellowing, for the protection of pedestrian and vehicle-accessible surfaces, indoors or outdoors. Consumption: 125 g/m².
