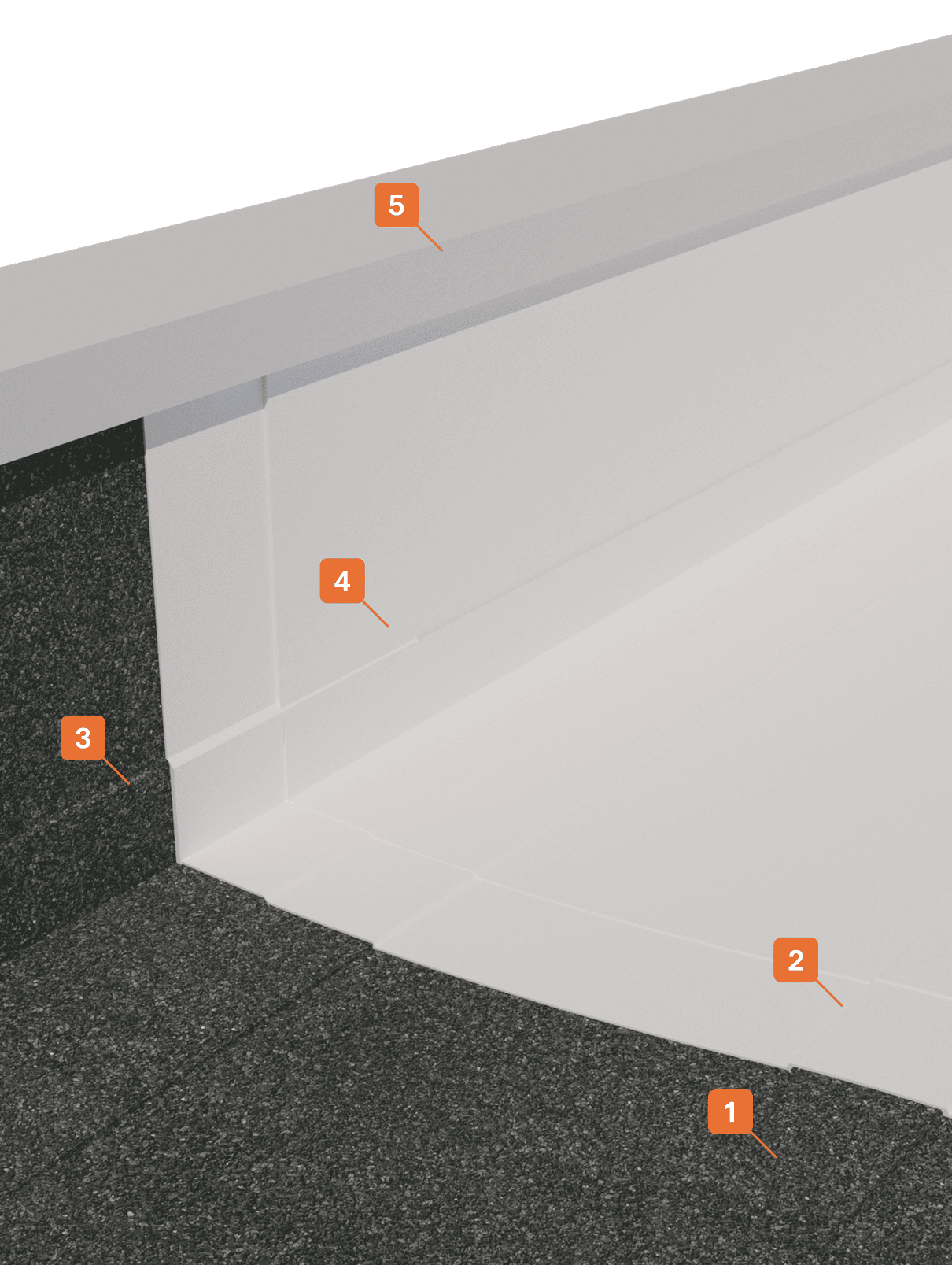

STRATIGRAPHY 1 - Winkler Chimica

PAINT COATING MAINTENANCE ON EXISTING BITUMINOUS MEMBRANES

Maintenance system to extend the life of bituminous waterproofing, using colored or reflective paint coatings. Water-resistant and durable against standing water

1 EXISTING BITUMINOUS MEMBRANE, INCLUDING MINERAL-SLATED FINISH

2 REFLECTIVE PROTECTIVE COATING SYSTEM

Roller, brush, or spray application of 2000 PLUS or 2000 PLUS REFLEX, coloured or high-reflectance protective coating, resistant to standing water, UV radiation, and weathering.
In the “Reflex” version, with a Solar Reflectance Index of SRI 108, it reduces roof surface temperatures, improving material durability and structural comfort.
Consumption: 0.6 kg/m² for single coat on smooth membranes; 0.9 kg/m² for two coats on mineral-slated membranes.

3 EXISTING BITUMINOUS MEMBRANE, VERTICAL UPSTAND

4 REFLECTIVE PROTECTIVE COATING SYSTEM, VERTICAL UPSTAND

Roller, brush, or spray application of 2000 PLUS or 2000 PLUS REFLEX.

5 Metal coping flashing
