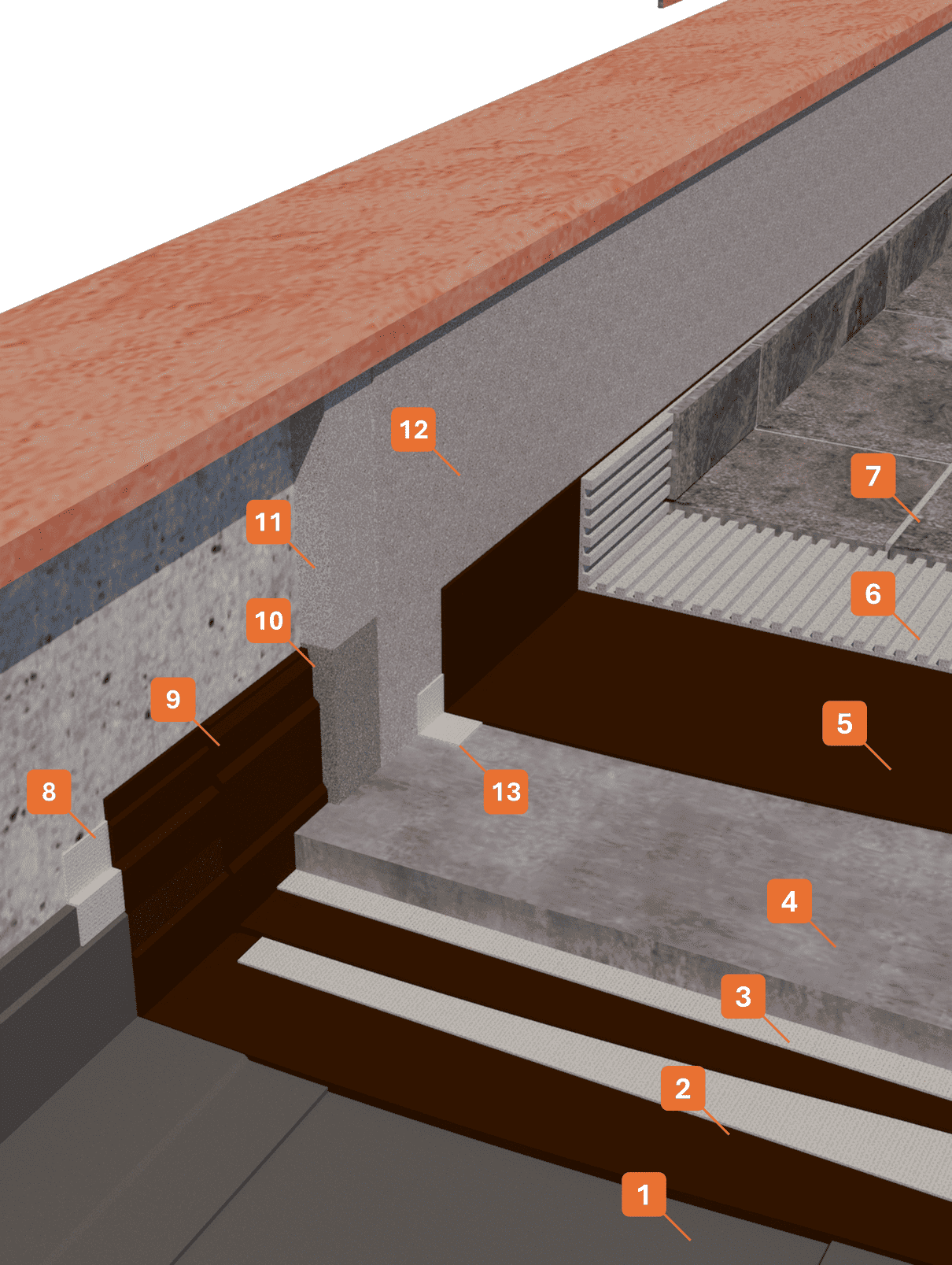

TILED ROOF SLAB MAINTENANCE WITH SEALED ELEMENT RESTORATION, USING A LIQUID MEMBRANE AND NEW CERAMIC TILE REPLACEMENT

System for removing existing tiled paving, restoring under-tile waterproofing, and installing new ceramic tiles

1 EXISTING BITUMINOUS MEMBRANE

2 RESTORATION OF EXISTING BITUMINOUS MEMBRANE

Apply WINGUM PRO TECK liquid bituminous membrane in aqueous dispersion, elastomeric, waterproof, thixotropic, resistant to water stagnation and weathering, using roller, brush, or spray. Apply in two coats with WINTECHNO MAT reinforcement between horizontal layers. Available also in “Rapid” version for fast-drying or “wet-on-wet” applications. Consumption for two coats: 1.8 kg/m².

3 DE-SOLARIZING LAYER: MADE WITH LDPE SHEET.

4 LOAD-DISTRIBUTING SCREED

Use fast-setting screeds WINPLAN 370 or WINPLAN PRO, minimum thickness 4 cm.

5 UNDER-TILE WATERPROOFING

Apply Wingrip Bituminoso, a bitumen-based aqueous emulsion product, modified with high-quality fillers and polymers for excellent crack-bridging and waterproofing. Applied in a single coat with roller or brush. Consumption: 1 kg/m².

6 TILE ADHESIVE

External-grade flexible adhesive ROYAL FLEX, class C2TES1, for ceramic tiles.

7 CERAMIC FLOORING

SUITABLE FOR EXTERIOR USE. GROUTING WITH WINSTUCCO FLEX.

8 UPTURN REINFORCEMENT

Apply self-adhesive butyl strip BC SEAL BAND along membrane edges.

9 RESTORATION OF EXISTING BITUMINOUS MEMBRANE, VERTICAL UPTURN

Apply WINGUM PRO TECK liquid bituminous membrane in aqueous dispersion, elastomeric, waterproof, thixotropic, resistant to water stagnation and weathering. Available in “Rapid” version. Consumption for two coats: 1.4 kg/m².

10 WATERPROOF BASEBOARD

Apply WINPLASTER, premixed cementitious waterproofing, on vertical upturn treated with WINGRIP® NEXT adhesion promoter. Consumption: 0.3 kg/m².

11 PLASTER

Apply base coat on vertical walls with premixed cement-based plaster WR05 WINTONAC, consumption 1.9 kg/m² per mm thickness.

12 FINISHING SKIM COAT

Apply WF02 RASOWIN cementitious finishing coat on walls, consumption 1.8 kg/m² per mm thickness.

13 CORNER REINFORCEMENT

Apply self-adhesive butyl strip BC SEAL BAND at corners. Used together with BC SEAL PAD for drains, outlets, and penetrations.
