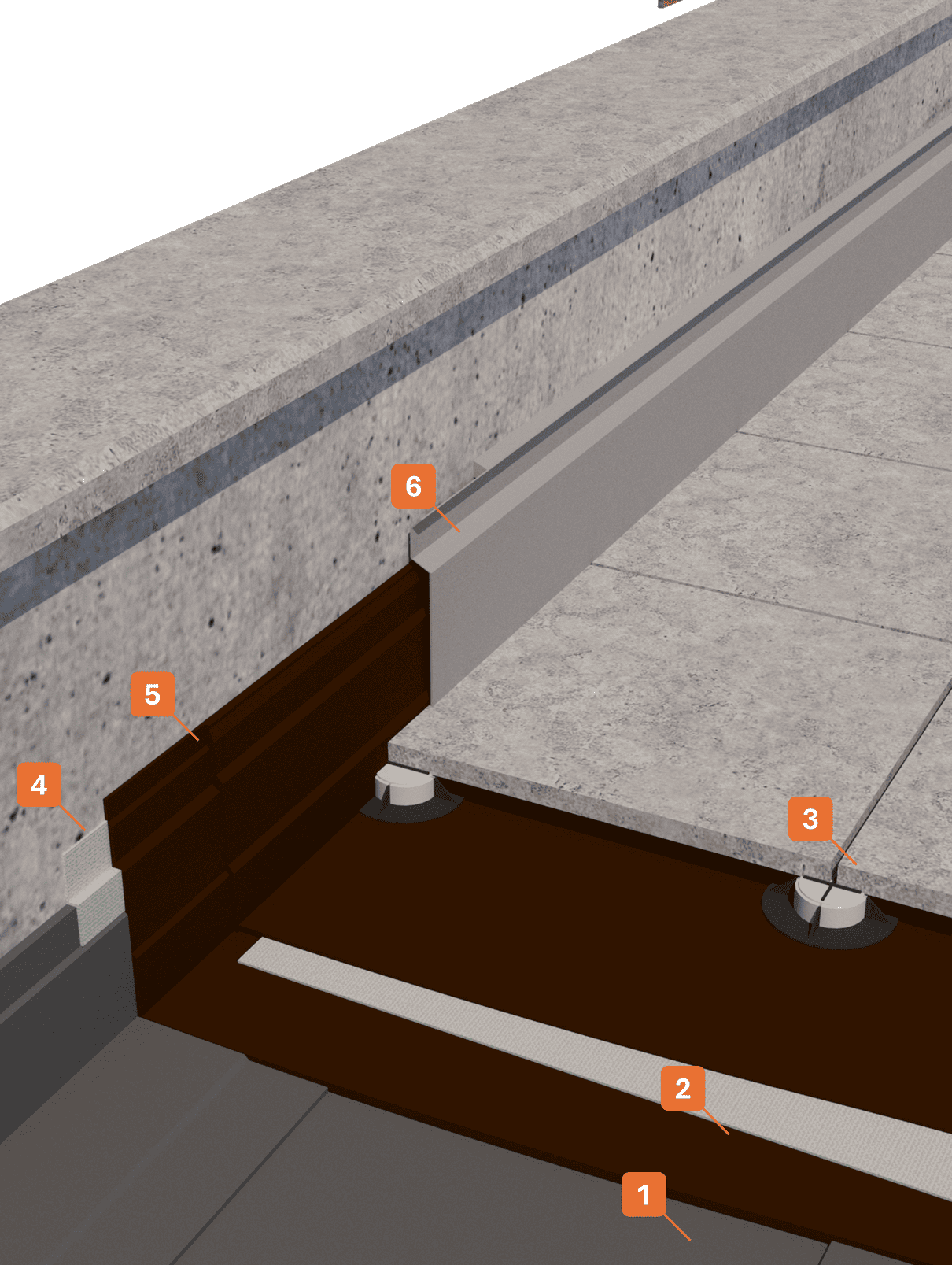

TILED ROOF SLAB MAINTENANCE WITH SEALED ELEMENT MAINTENANCE USING A LIQUID MEMBRANE, AND NEW FLOATING PAVING REPLACEMENT
System for removal of the existing tiled paving, restoration of under-tile waterproofing, and laying of new paving
1 EXISTING BITUMINOUS MEMBRANE
2 RESTORATION OF EXISTING BITUMINOUS MEMBRANE
Apply WINGUM PRO TECK, a liquid bituminous membrane in aqueous dispersion, elastomeric, waterproof, thixotropic, resistant to water stagnation and weathering, using roller, brush, or spray. Apply in two coats with WINTECHNO MAT reinforcement between horizontal layers. Available in “Rapid” version for fast-drying or “wet-on-wet” applications. Consumption for two coats: 1.8 kg/m².
3 FLOATING PAVEMENT
4 UPTURN REINFORCEMENT
Apply self-adhesive butyl strip BC SEAL BAND along the edges of the membrane.
5 RESTORATION OF EXISTING BITUMINOUS MEMBRANE, VERTICAL UPTURN
Apply WINGUM PRO TECK, liquid bituminous membrane in aqueous dispersion, elastomeric, waterproof, thixotropic, resistant to water stagnation and weathering. Available in “Rapid” version. Consumption for two coats: 1.4 kg/m².
