A Complete Winkler System for Pool and Solarium Flooring

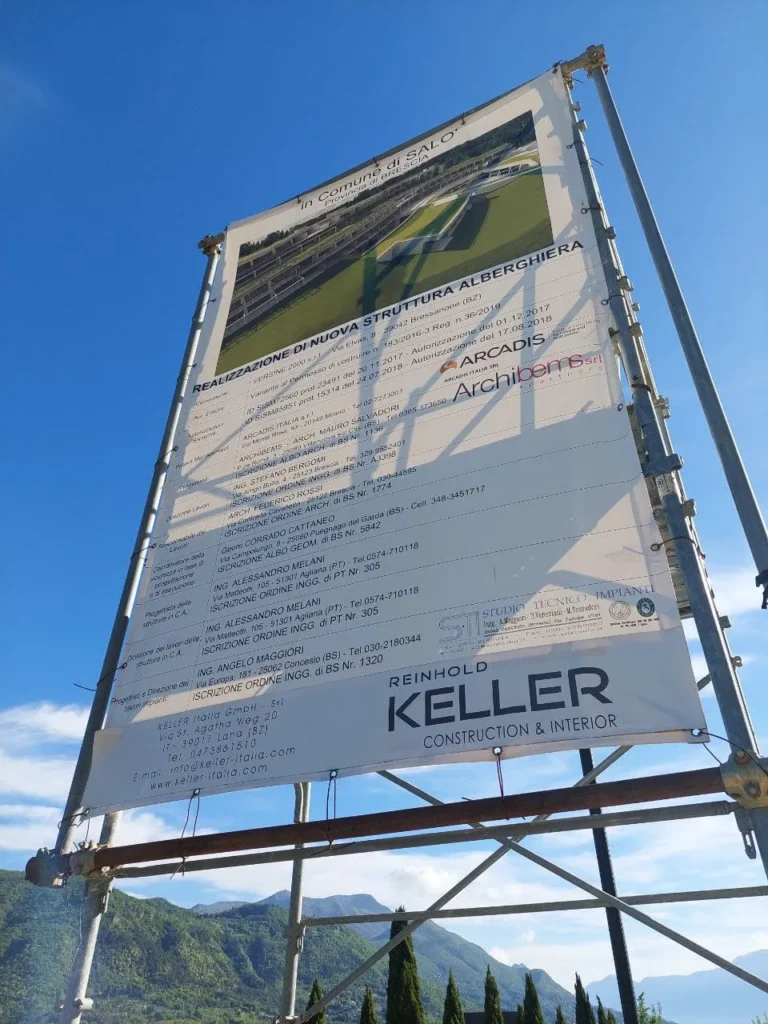

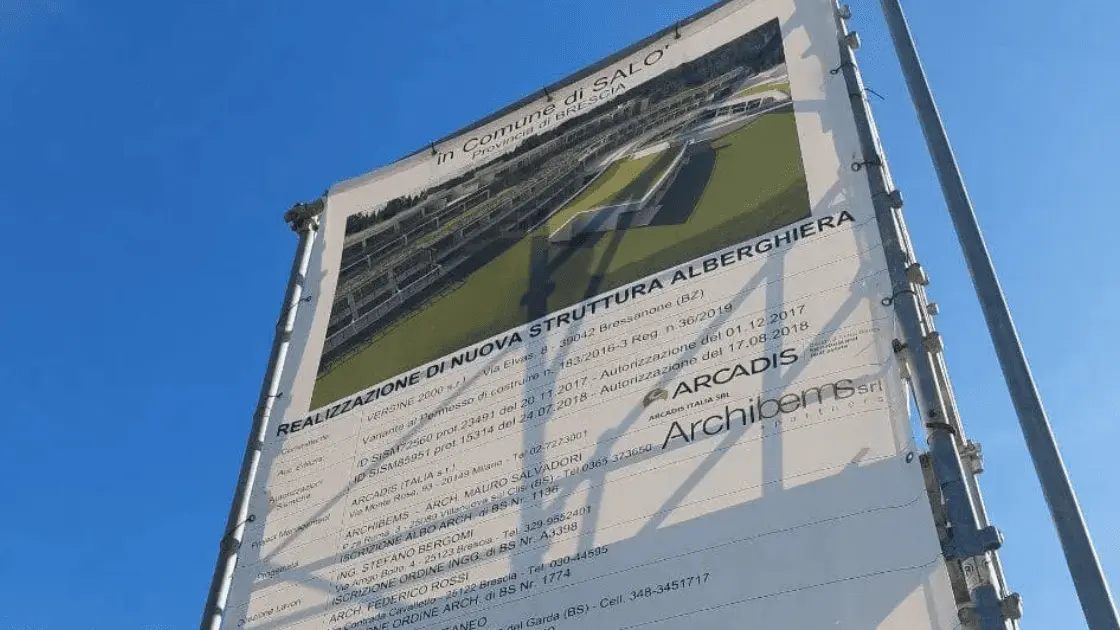

During the construction of a new panoramic hotel in Salò, the client required a certified waterproofing system capable of providing durable protection for the swimming pool, solarium, and all external surfaces.

The solution also needed to guarantee:

• rapid installation
• safe on-site application
• low environmental impact

The choice fell on a fully integrated Winkler system, combining waterproofing, tile bonding, and sealing in a single technical cycle, using water-based, low-VOC products.

Project Objectives

The project aimed to guarantee:

• Certified waterproofing of external surfaces
• Continuous resistance to water, chlorine, and weather exposure
• Long-term durability
• Reduced construction time
• Environmentally sustainable solutions

Swimming pools and solariums are particularly critical areas due to:

• Water stagnation
• Thermal shock
• Mechanical stress caused by heavy foot traffic

Winkler Technical Consultancy and On-Site Support

From the early design stages, the waterproofing certification engineer involved Winkler technical specialists to:

• Define the waterproofing system
• Select the most suitable materials
• Provide on-site assistance during installation
• Verify compliance with required performance standards

This collaborative approach optimized time and costs while ensuring certified quality and uninterrupted site operations.

Waterproofing System Adopted

The system included:

• Substrate waterproofing
• Treatment of critical wall-to-floor junctions
• Waterproof tile bonding
• Elastic sealing of joints and corners

All selected products are water-based and solvent-free, in line with the WinklerSafe philosophy.

Products Used and Technical Advantages

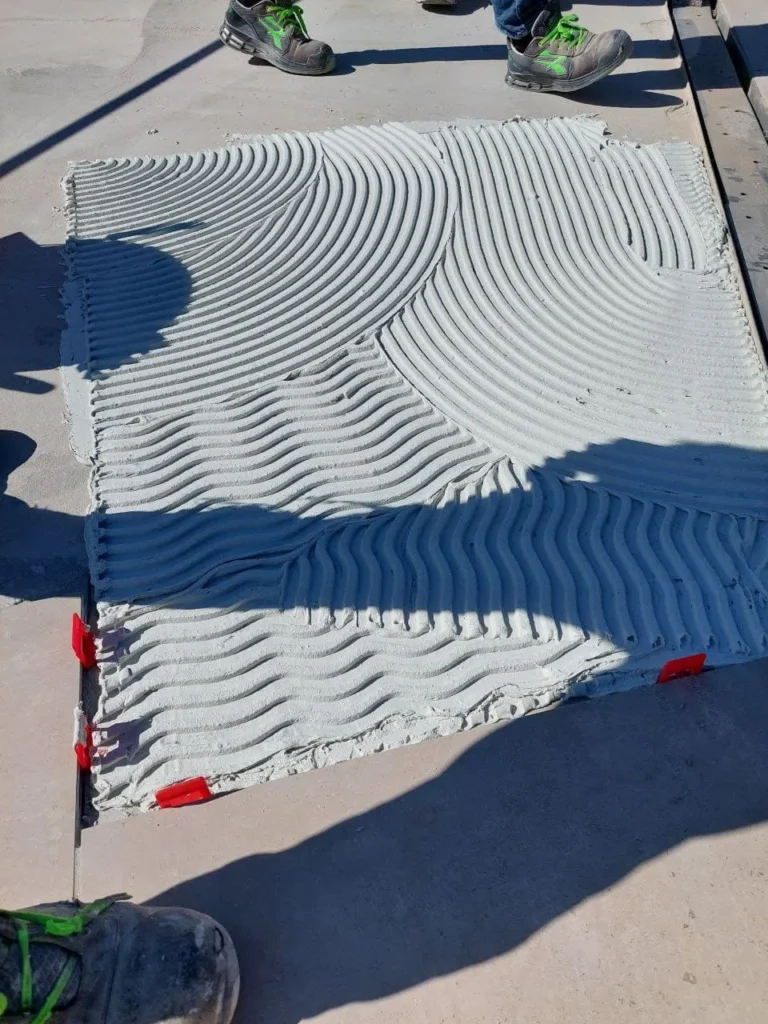

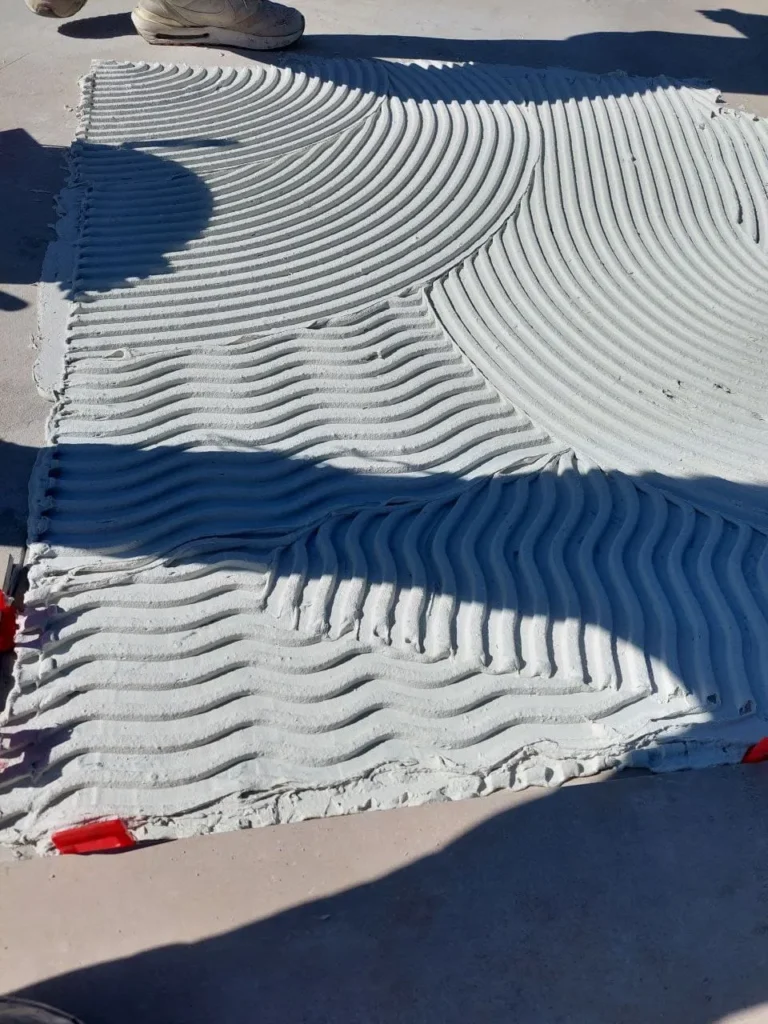

Bond Cement – Two-Component Waterproofing Adhesive

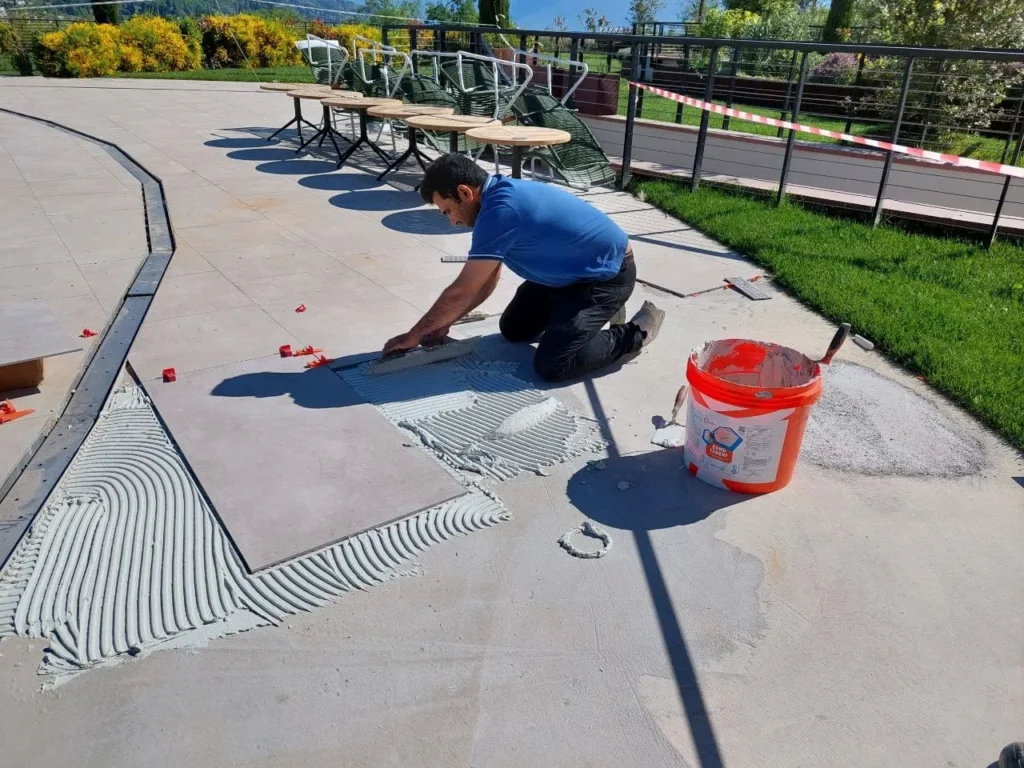

Applied for laying the solarium tiles.

Advantages:

• Excellent adhesion and mechanical strength
• Waterproofing and bonding in one application
• No reinforcement mesh required
• Reduced installation time
• Ideal for pools, terraces, and environments exposed to water stress

Wingum Pro Teck Rapid – Fast-Drying Bituminous Waterproofing Membrane

Applied to the substrate prior to tile installation.

Key Features:

• High water resistance
• Fast drying: rainproof in just a few hours
• “Wet on wet” application
• Enables same-day completion of work
• Ideal for projects with tight construction deadlines

BC Seal Band – Wall-to-Floor Joint Sealing

Self-adhesive butyl tape coated with non-woven fabric for detailing.

Functions:

• Sealing joints and corners
• High elasticity and deformability
• Excellent integration with adhesives and cementitious coatings
• Ensures continuous waterproofing across structural elements

Wingrip Bituminoso –  Sealing for Junctions and Corners

Polymer-modified bituminous emulsion for critical areas.

Technical Benefits:

• Excellent crack-bridging capability
• Long-term stability
• EC1 PLUS certification (very low VOC emissions)

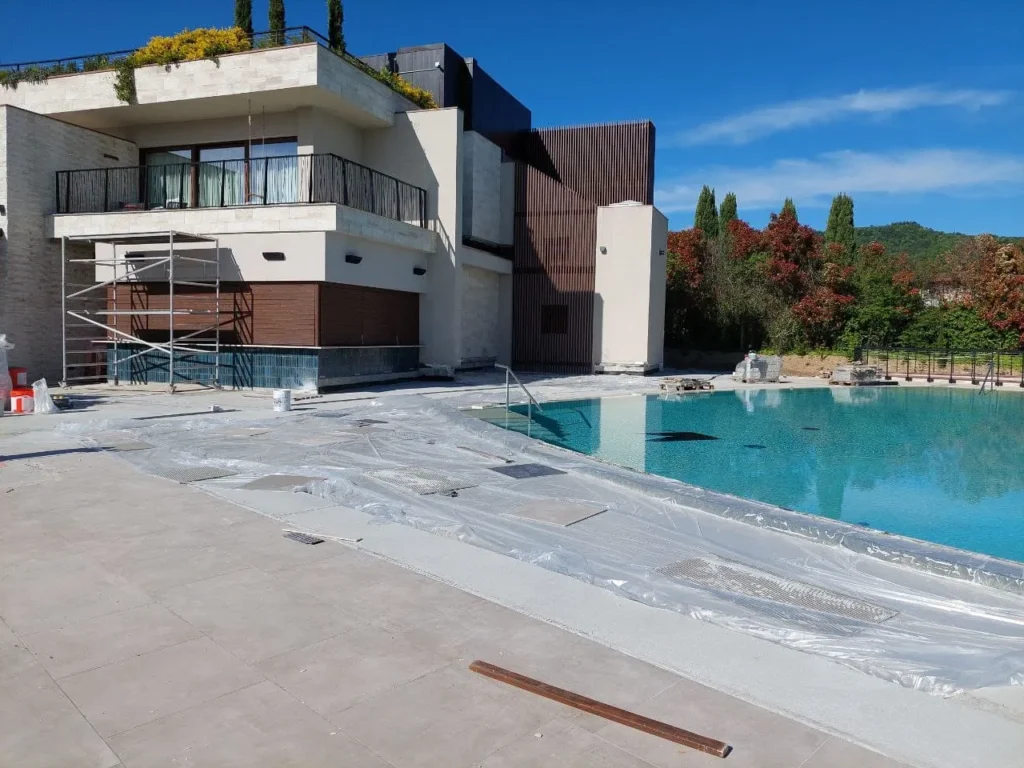

Final Result

The intervention deliverd a fully waterproofed, safe, and certified swimming pool and solarium, with high-quality aesthetics and optimized construction time.
The client achieved:

• Long-lasting structural protection
• Reduced risk of water infiltration and future maintenance
• Faster installation times
• Sustainable and low- VOC solutions

This project is a concrete example of how an integrated Winkler system can ensure high performance , durability, and certified results.

FAQ

What are the main challenges in waterproofing swimming pools?

Swimming pools face constant water stagnation, thermal shock, chlorine exposure, and heavy foot traffic requiring a highly elastic and durable waterproofing system.

Is it possible to waterproof and bond tiles in a single phase?

Yes. With products like Bond Cement, waterproofing and tile bonding can be carried out simultaneously, reducing both time and costs.

Are these solutions suitable for hospitality projects with tight schedules?

Absolutely. Fast drying products and “fresh-on-fresh” applications enable rapid installation and efficient planning.

Is the system sustainable?

Yes. All products used are water-based, solvent-free, and low in VOC emissions, aligning with modern sustainability and safety standards.missioni VOC. Sono certificati per garantire la salute degli operatori e il rispetto dell’ambiente circostante, come richiesto dai moderni standard di bioedilizia.
